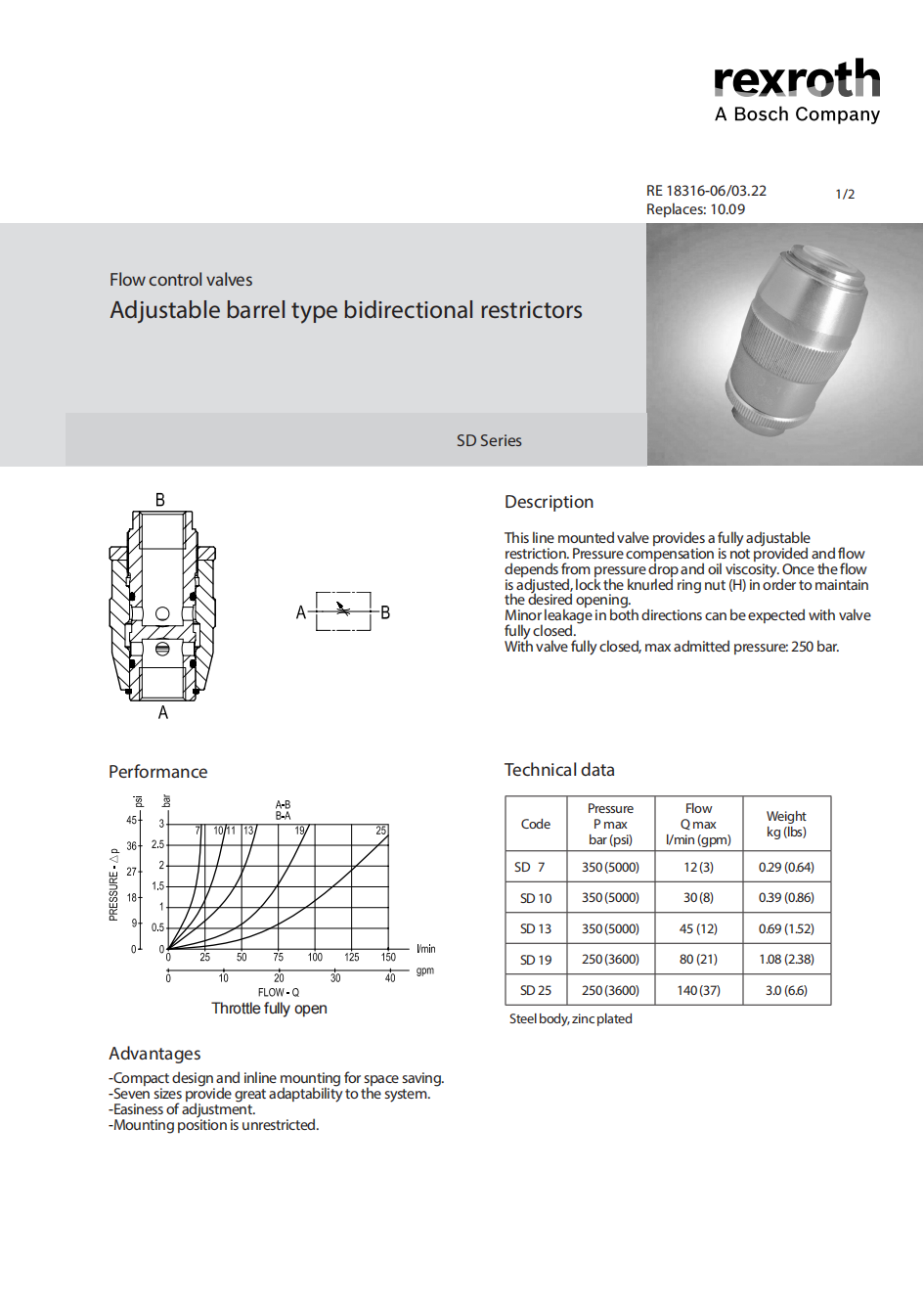

Description

This line mounted valve provides a fully adjustable  restriction. Pressure compensation is not provided and flow  depends from pressure drop and oil viscosity. Once the flow  is adjusted, lock the knurled ring nut (H) in order to maintain  the desired opening.  Minor leakage in both directions can be expected with valve  fully closed.  With valve fully closed, max admitted pressure: 250 bar.
