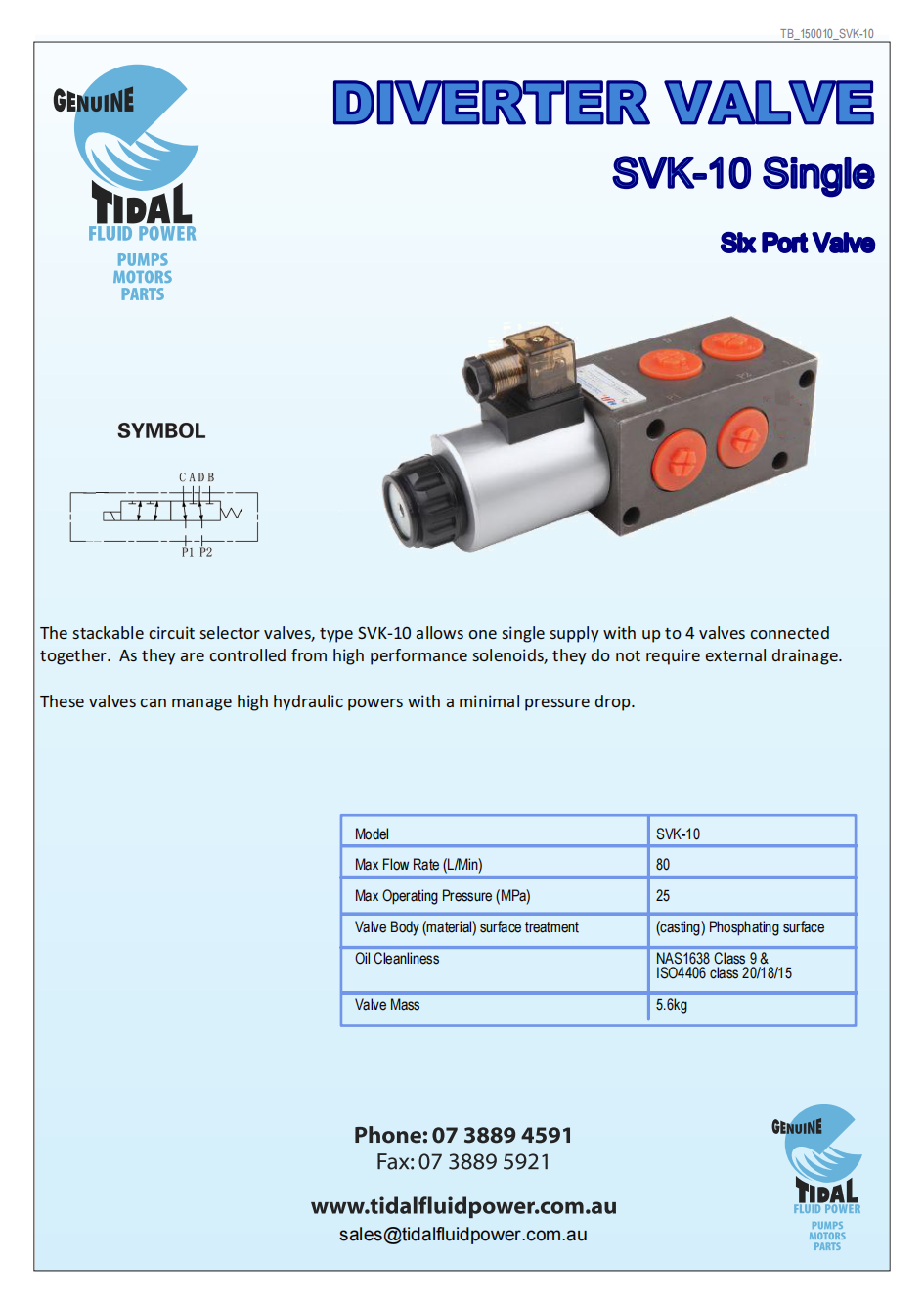

SVK-10 Six Port Diverter Valve is a stackable circuit selector valve.  This type of  Valve allows one single supply with up to 4 valves connected together. Because they are controlled from high performance solenoids they do not require external drainage.  These valves can manage high hydraulic powers with a minimal pressure drop.

Features:

• Selector Valve type SVK-10

• Allows one single supply with 4 selector valves

• Max Flow rate 80L/Min

• Max Operating Pressure 25MPa

•

•
