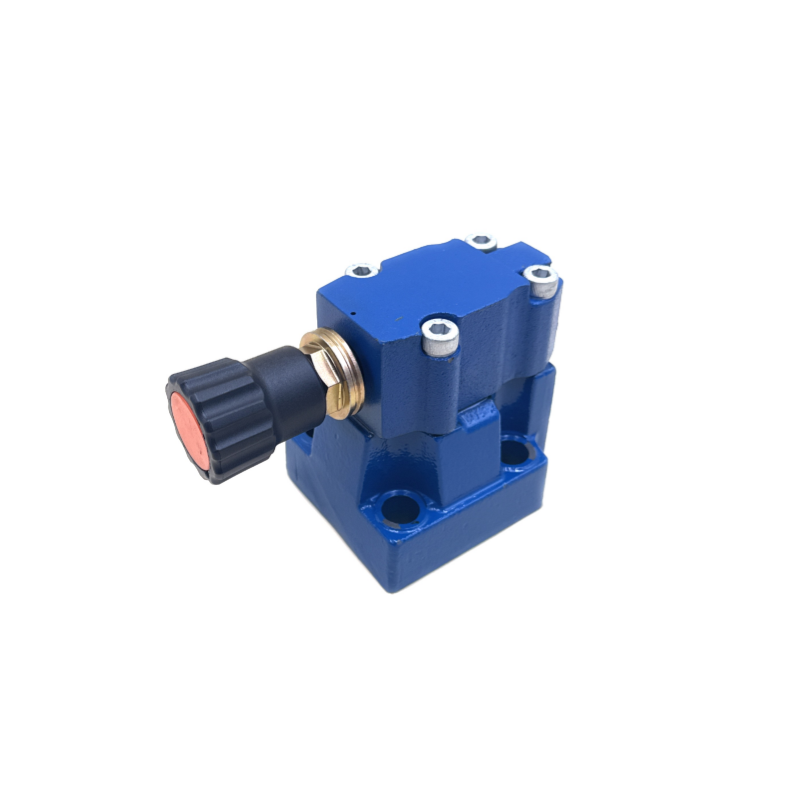

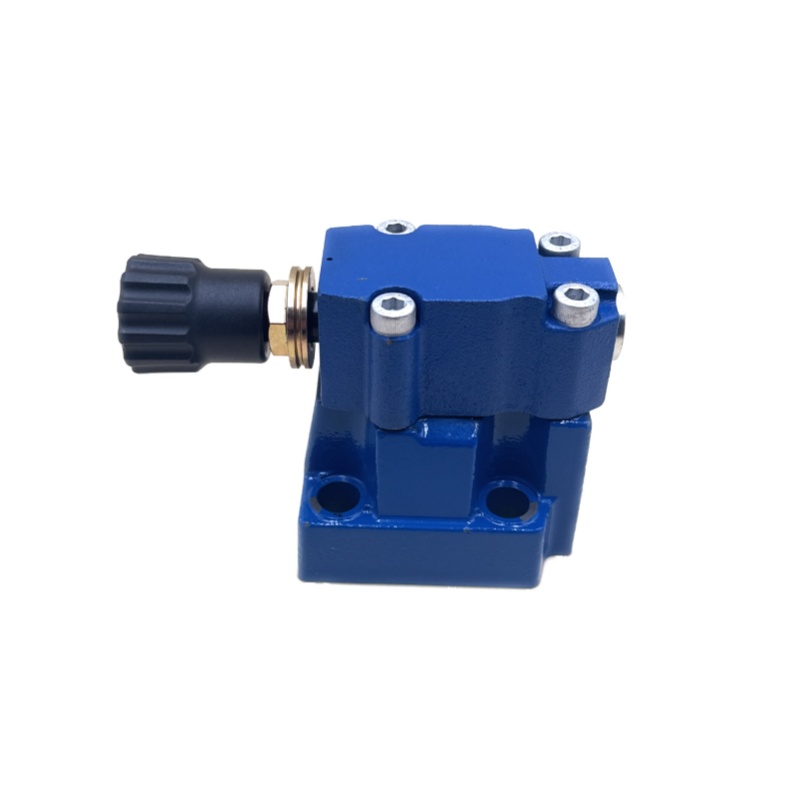

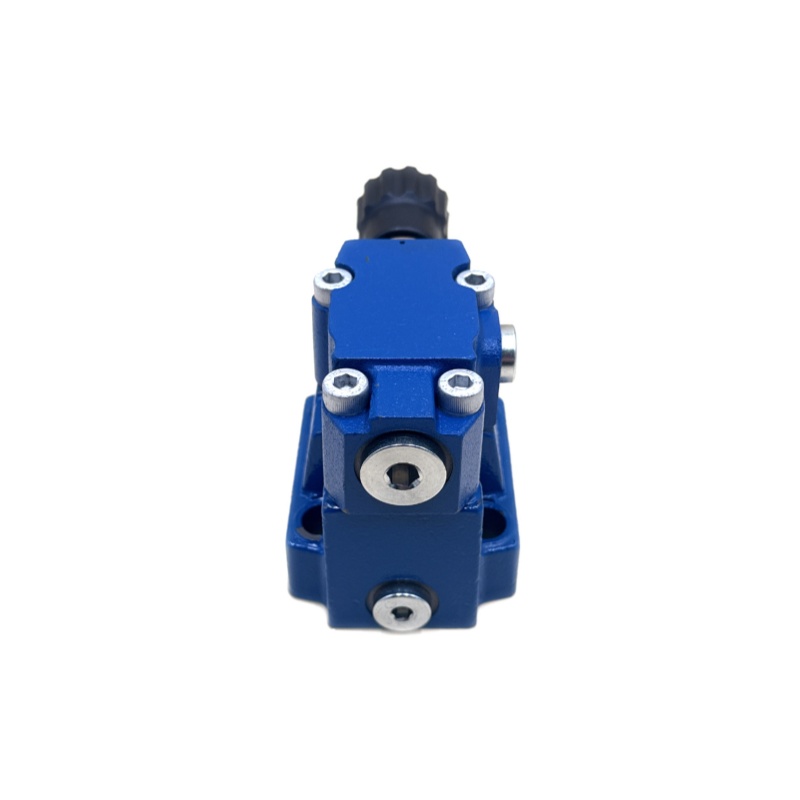

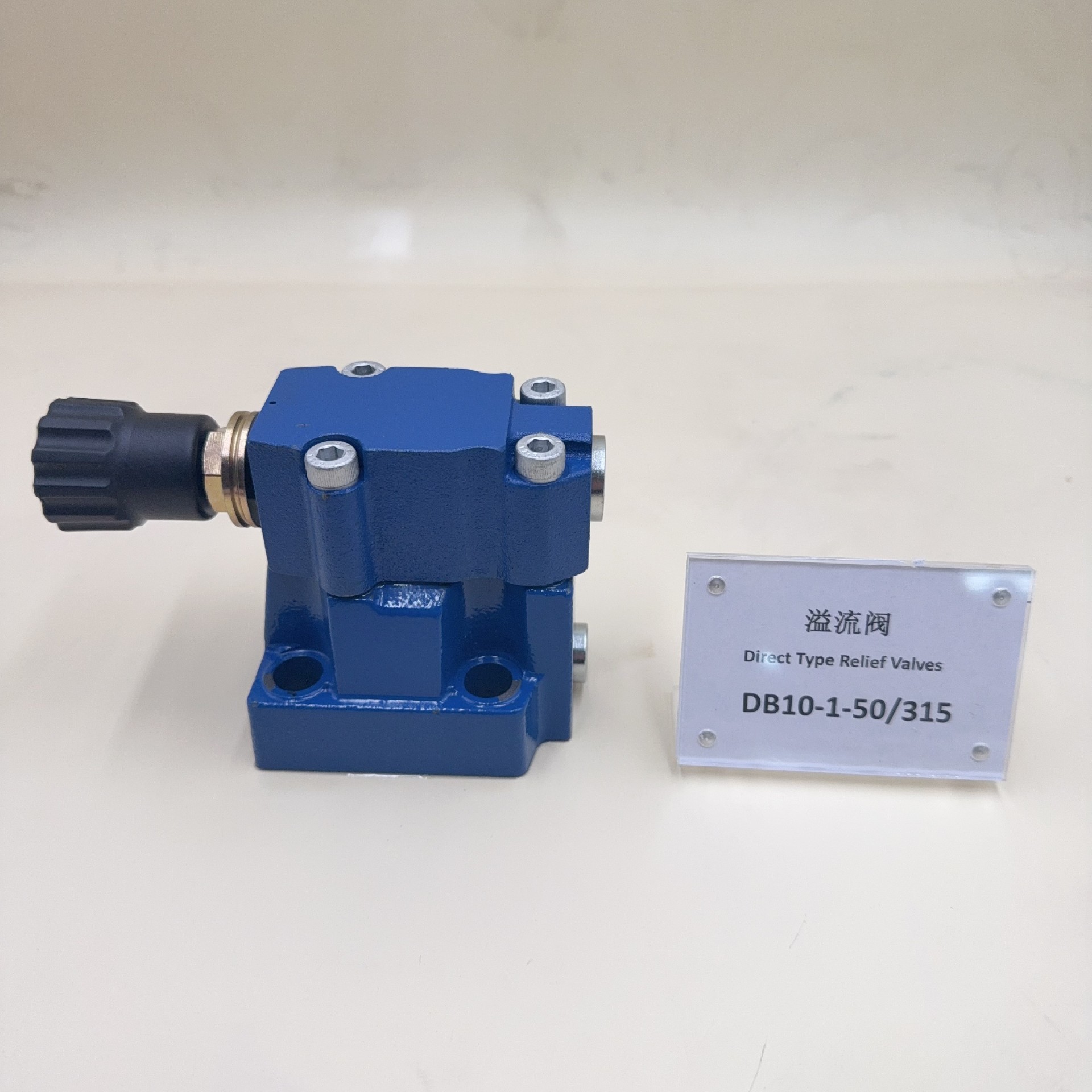

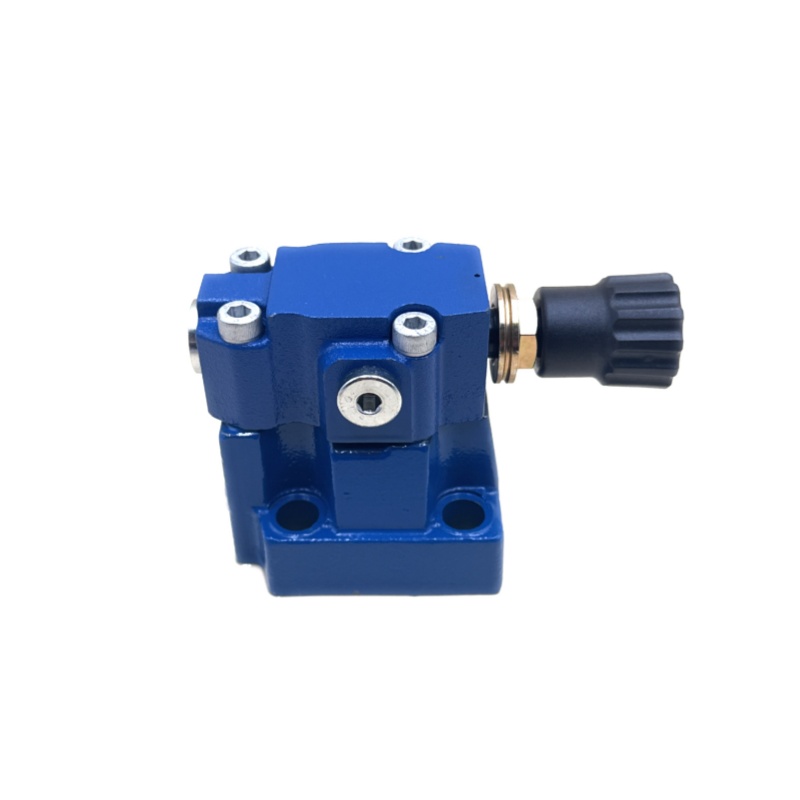

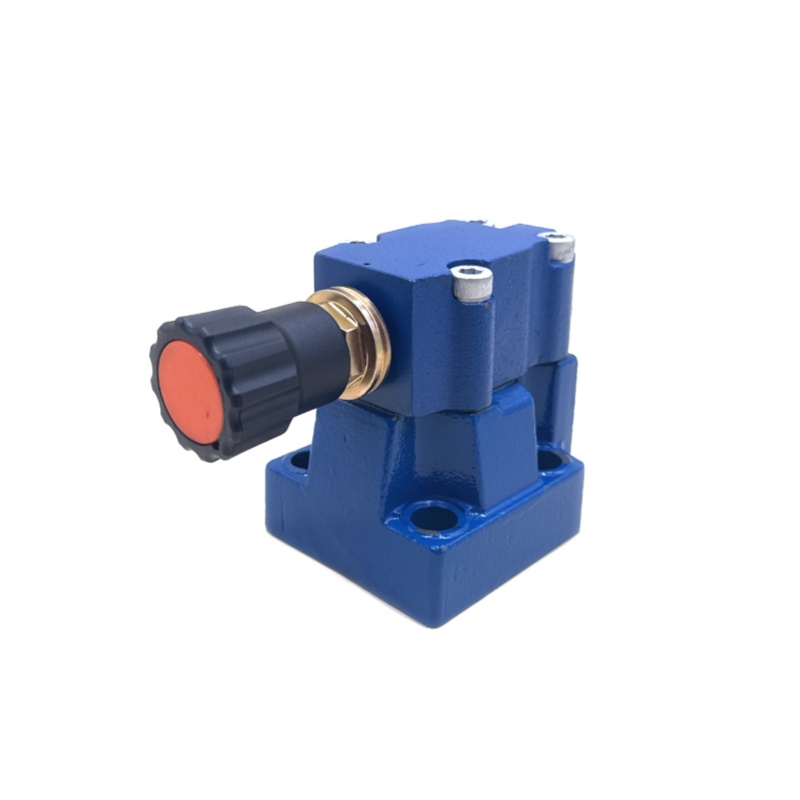

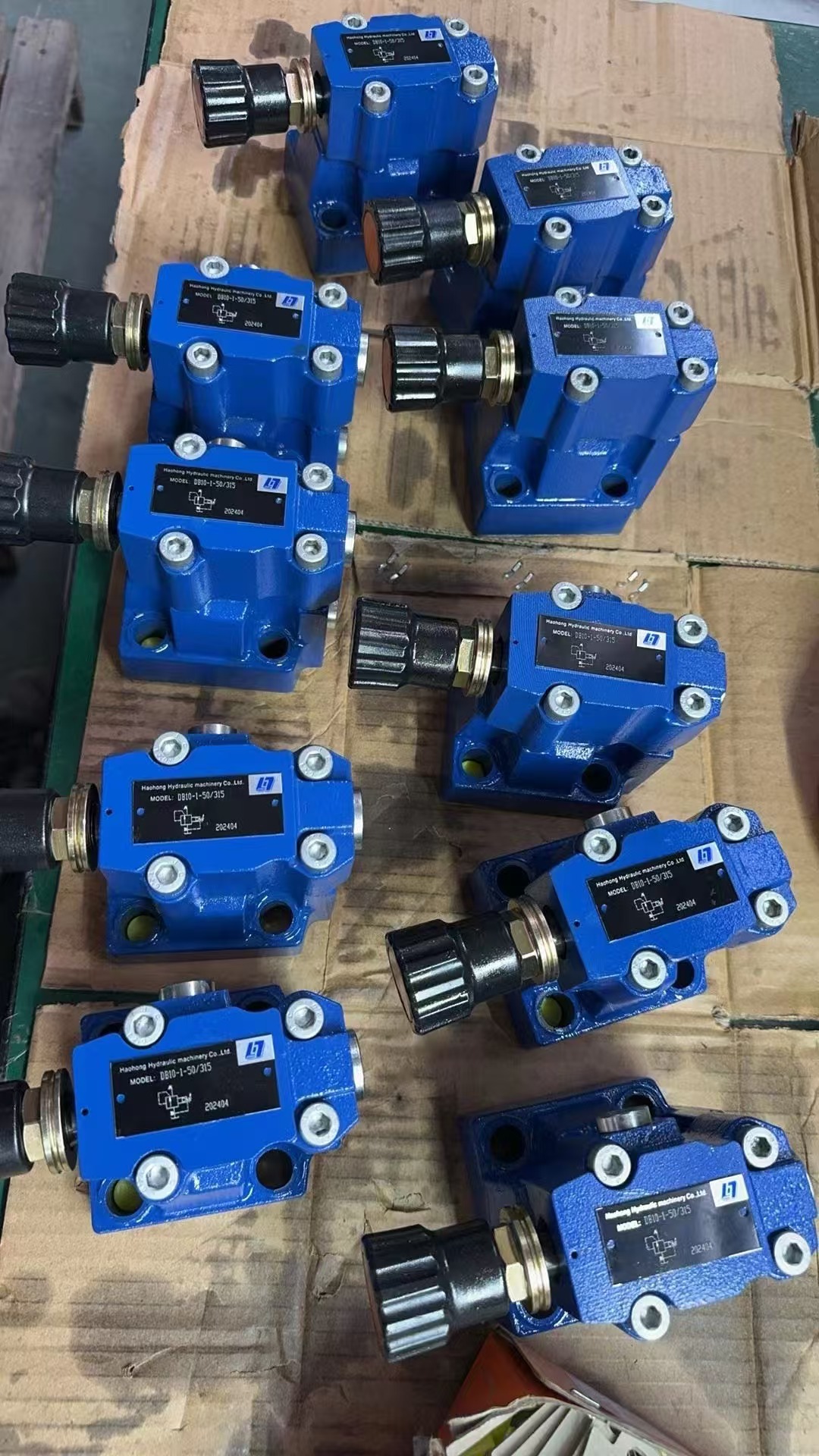

Bosch Rexroth Pilot Operated Pressure Relief Valves Type DB,DBW
Size 10 ... 32
Component series 5X
Maximum operating pressure 350 bar
Maximum flow 650 l/min
Features:

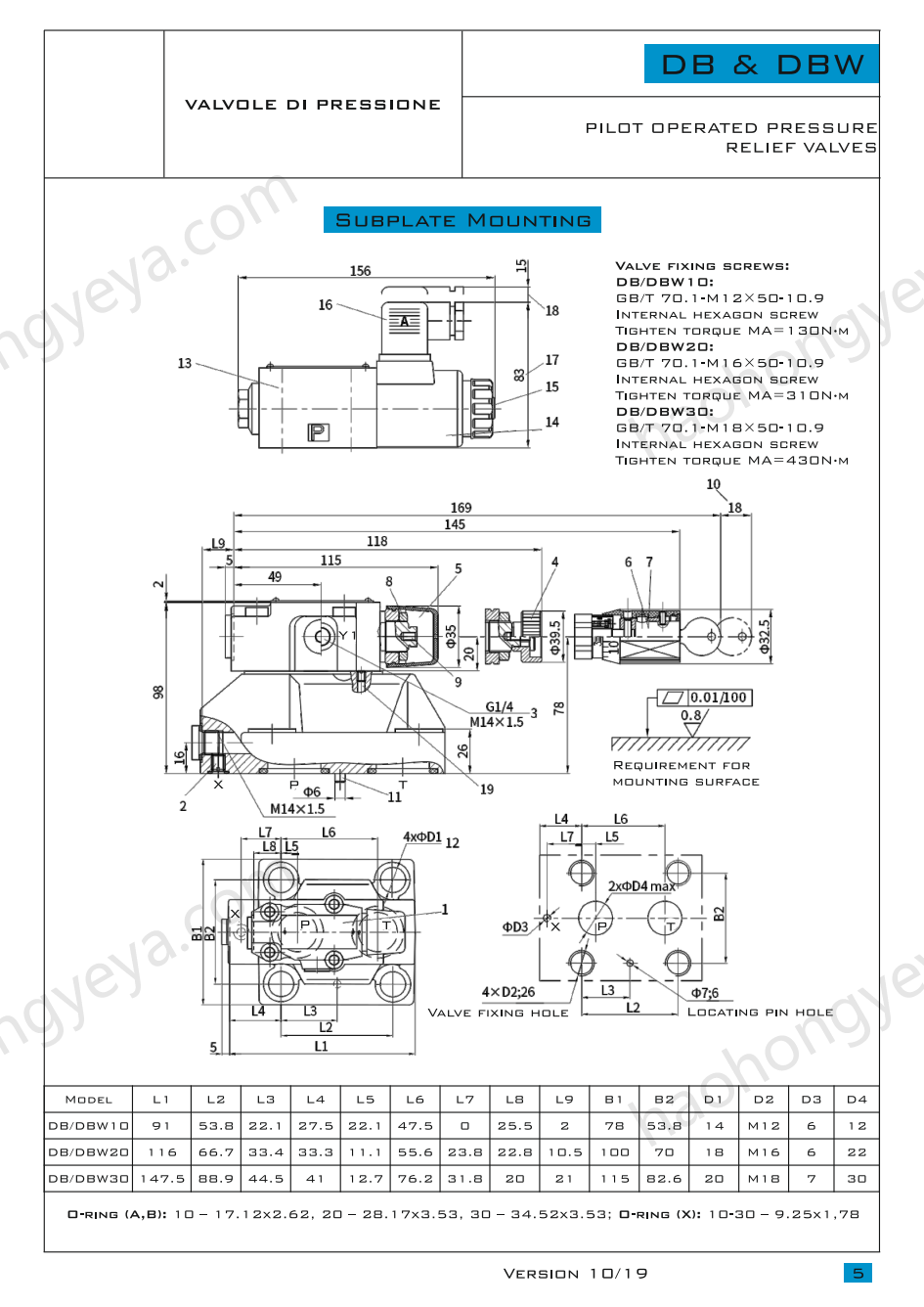

For sub plate mounting
Porting pattern according to ISO 6264-06-09 (NG10), ISO 6264-08-13 (NG25) and ISO 6264-10-17 (NG32)

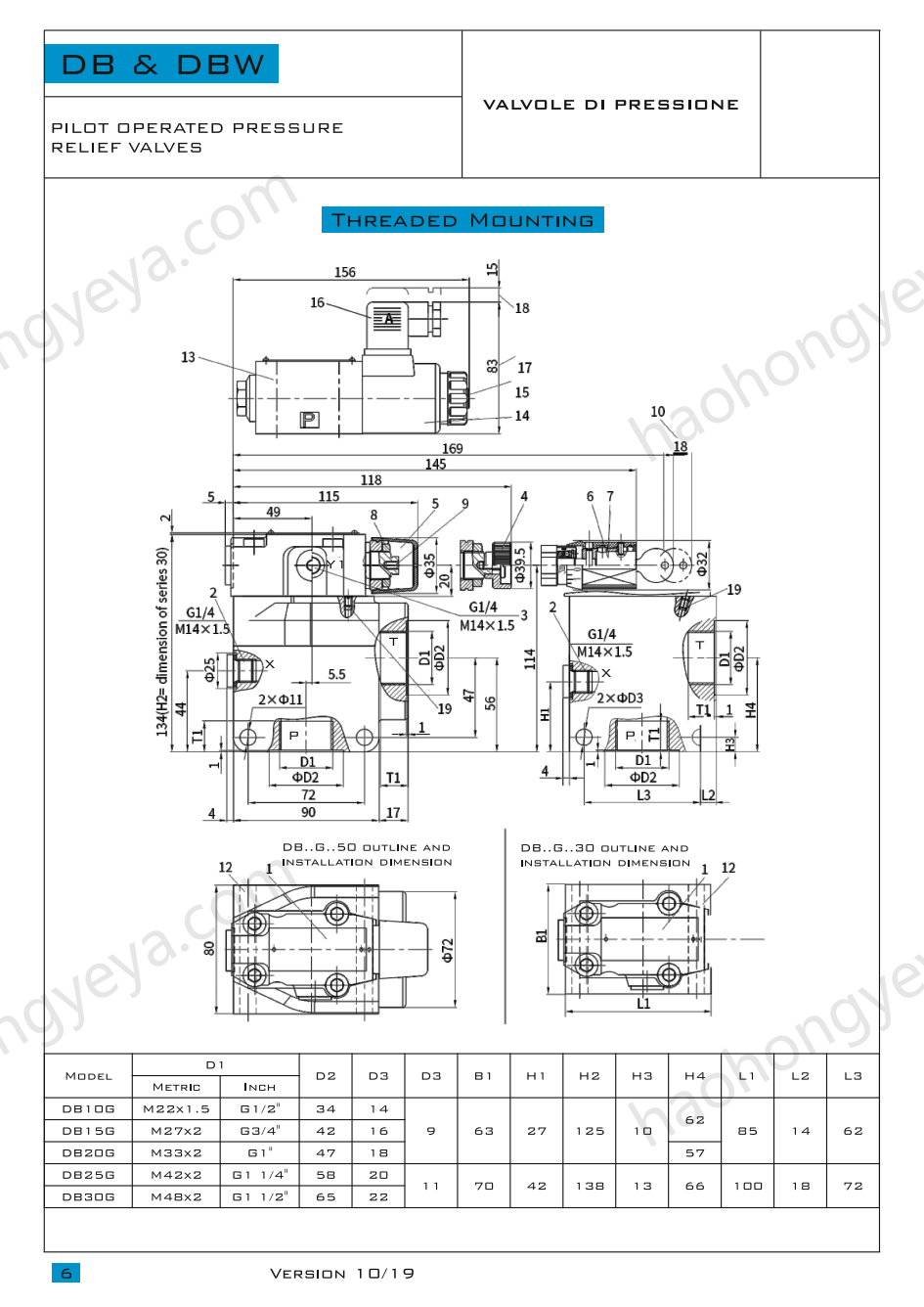

For threaded connection
Solenoid-actuated unloading via an installed directional spool valve or directional seat valve
High-power solenoid
Switching shock damping, optional (DBW type only)
Corrosion-protected design
CE conformity according to the Low-Voltage Directive 2014/35/EU for electrical voltages > 50 VAC or > 75 VDC
Solenoid coil as approved component with UR marking according to UL 906, edition 1982, optional
