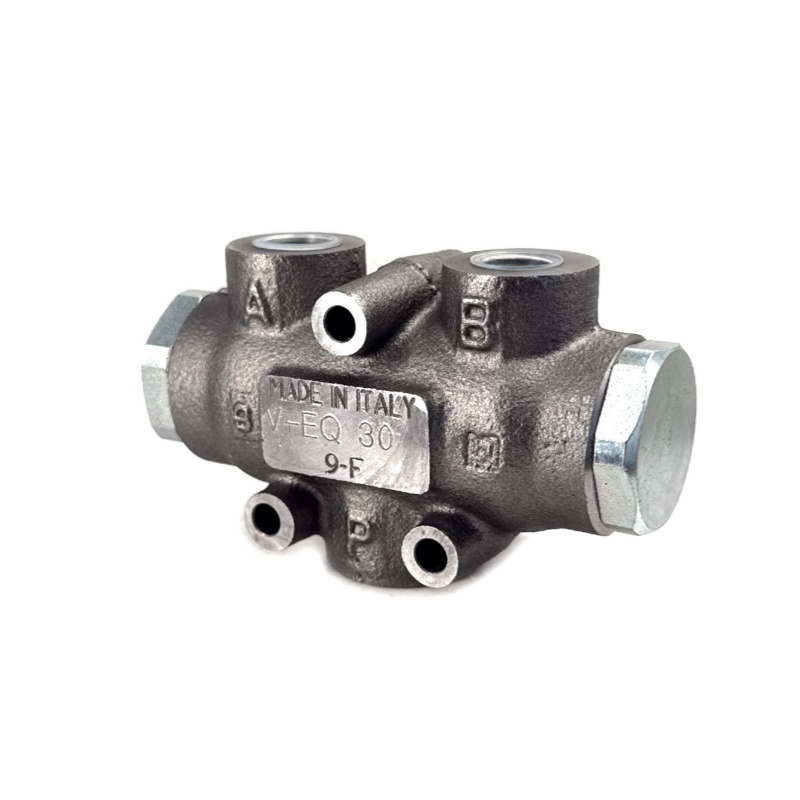

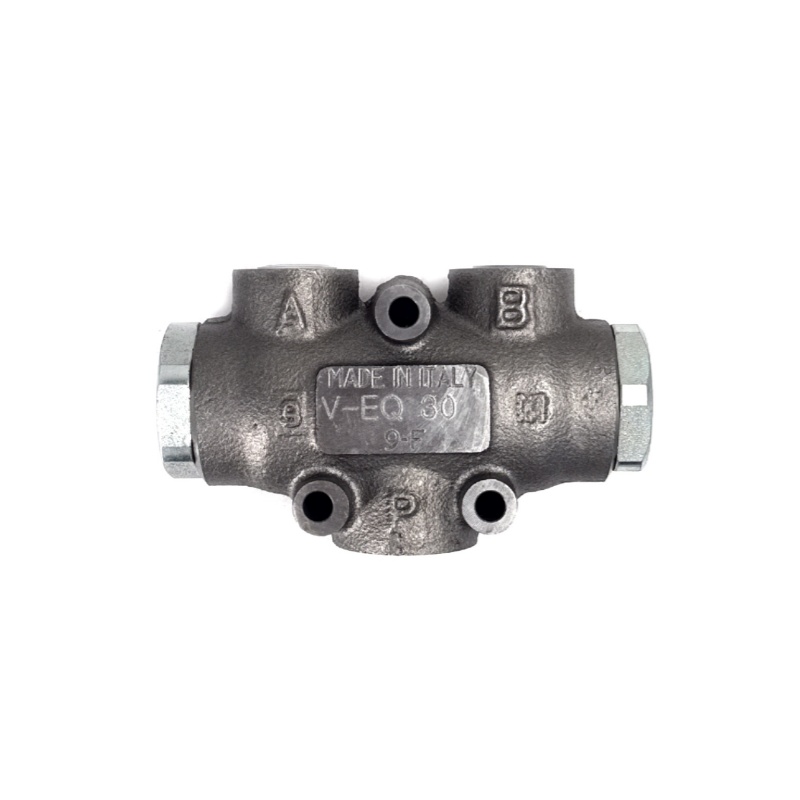

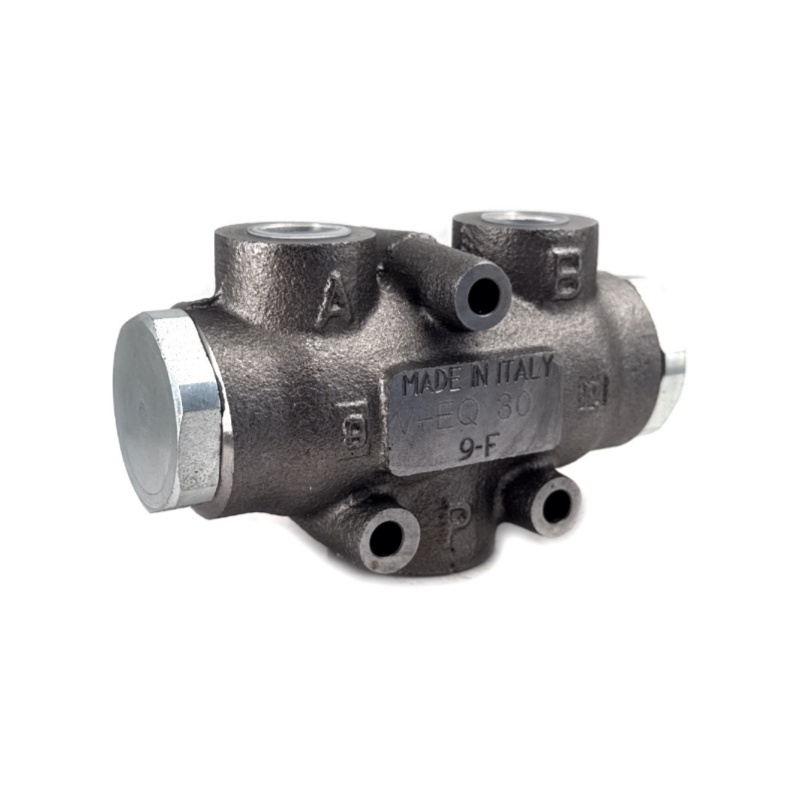

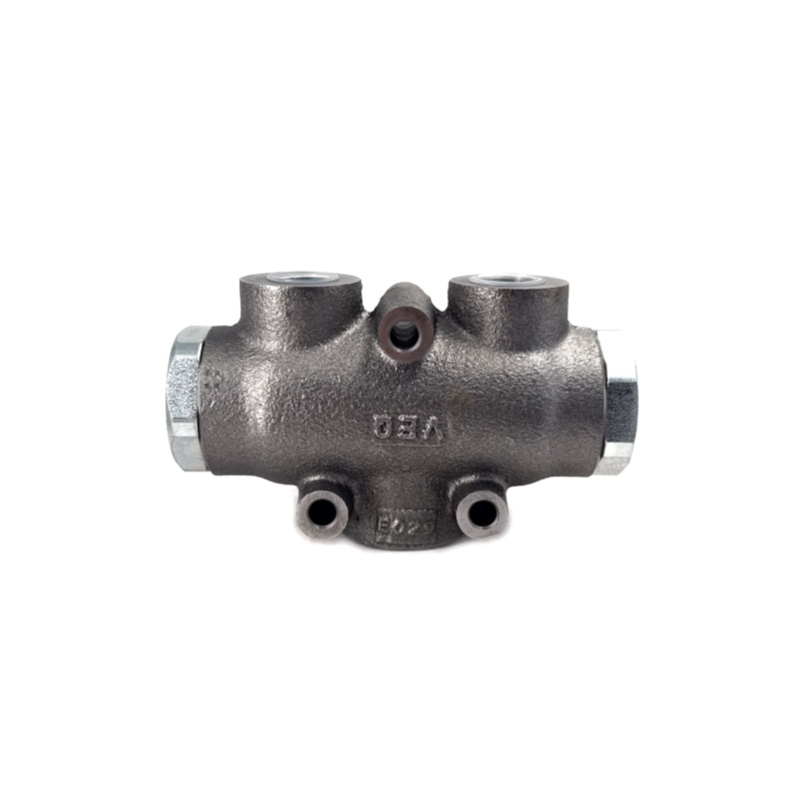

FLOW DIVIDER VEQ TYPE

The VEQ-series flow divider is used for dividing the oil flow into two equal parts; whereas in the opposite direction, such flow is reunified regardless of the pressure variation generated by the actuators and their flow. Minimum oil inlet 1 litre up to a maximum value of 80 litres depending on the model chosen.

These valves are used when two equal actuators, that are not mechanically coupled, supplied by the same pump and controlled by a single valve, must move simultaneously both in extension and retraction.
