| Control Method | electro-pneumatic |
|---|---|
| Presure Medium | Mineral oil based hydraulic oil |
| Nominal Flow | 40 L/min (10.5 gpm) |
| Viscosity Range | 12 CST-400 CST |
| Operating Pressure | Maximum 250 bar at P Port |
| Internal Leakage | 15 cc/min at 160 bar, 50℃ |
| Ambient Temp | -40°C to +80°C (-40°F to +176°F) |
| Spool Stroke | ±6mm |
| Valve Structure | Monoblock Valve |
| Valve Surface | Phosphating treating |

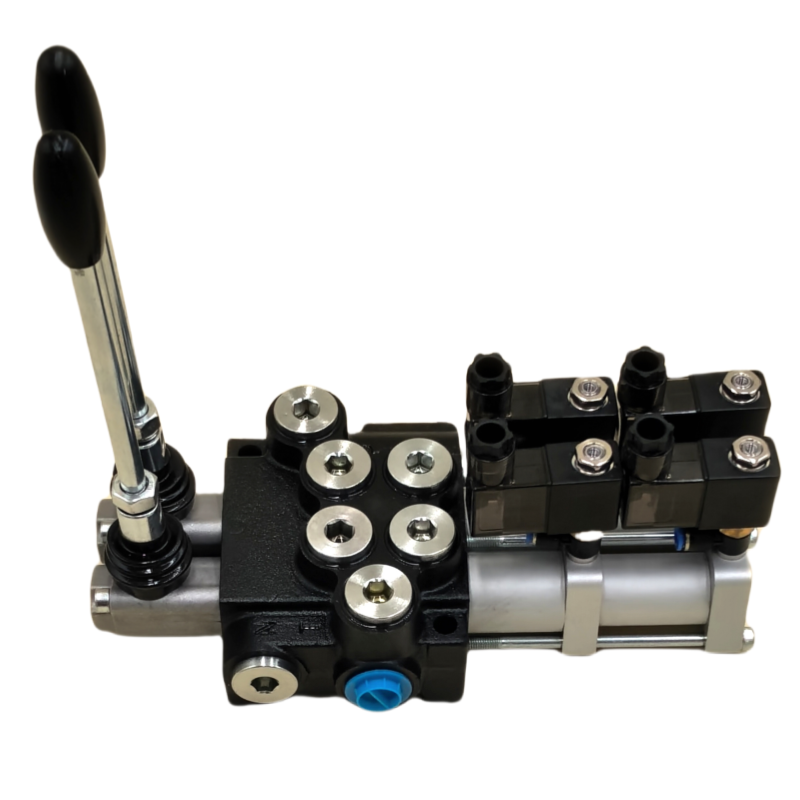

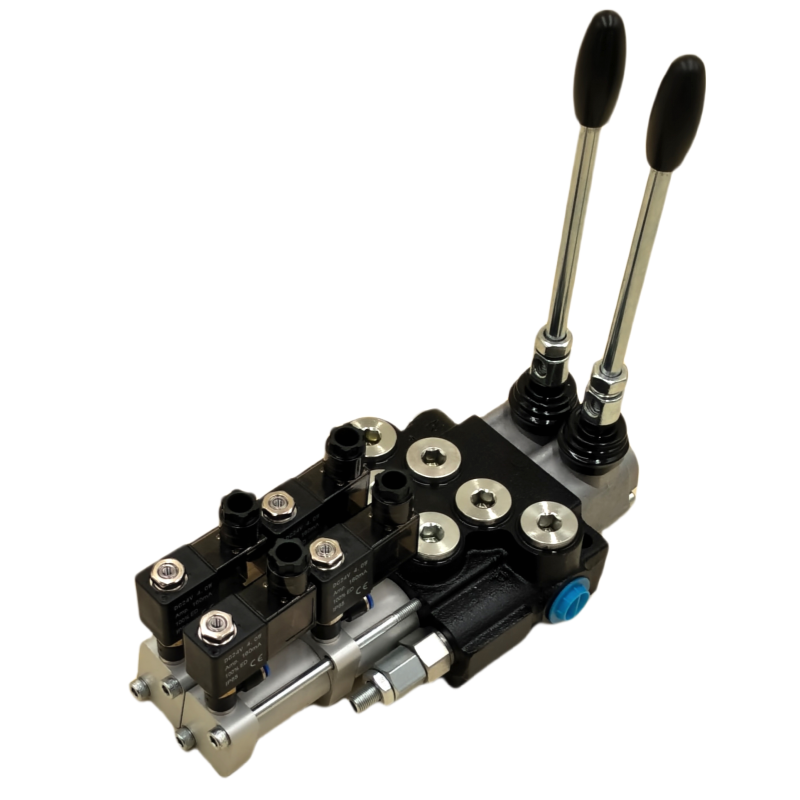

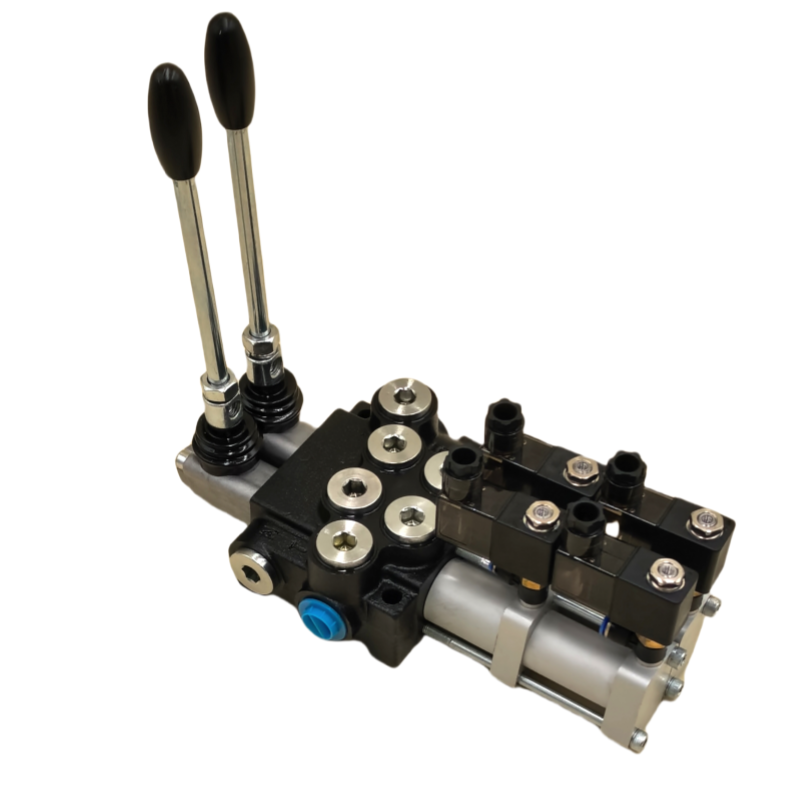

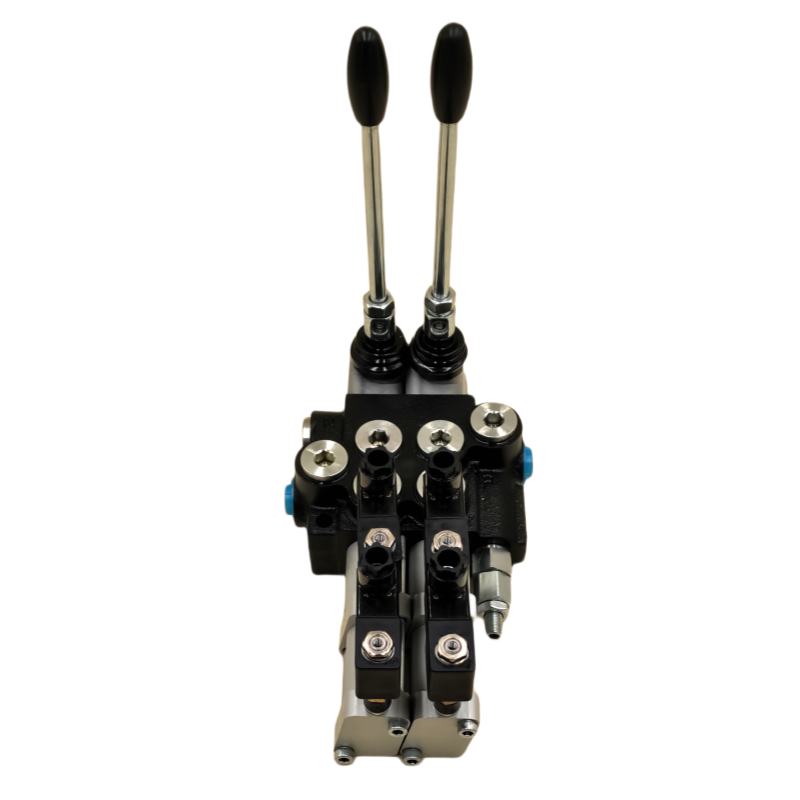

Introducing the P40 Electro-pneumatic Directional Control Valve – the perfect solution for precise control in electro-pneumatic systems. The P40 series comprises economical monoblock valves known for their compact structure and stable performance, making them suitable for a wide range of applications.
Featuring a parallel circuit type, the P40 valve seamlessly integrates into electro-pneumatic systems, ensuring efficient control and optimal performance. Its monoblock structure allows for easy installation and maintenance, while the availability of 1-7 sections offers flexibility to meet specific system requirements.
The P40 valve offers exceptional value with its low price, without compromising on quality or versatility. Whether you’re a small business or a large-scale manufacturer, the P40 valve provides reliable support, helping you enhance productivity while keeping costs in check.
Experience the reliability and performance of the P40 Electro-pneumatic Directional Control Valve. Its compact design and stable operation make it a standout choice in the industry. With its ability to withstand demanding conditions, the P40 valve ensures consistent performance and durability.
