| Control Method | pneumatic |
|---|---|
| Model No. | P80 Series Hydraulic Valve |
| Presure Medium | Mineral oil based hydraulic oil |
| Nominal Flow | 80 L/min (10.5 gpm) |
| Viscosity Range | 12 CST-400 CST |
| Operating Pressure | Maximum 250 bar at P Port |
| Internal Leakage | 15 cc/min at 160 bar, 50℃ |
| Ambient Temp | -40°C to +80°C (-40°F to +176°F) |
| Spool Stroke | ±6mm |
| Valve Structure | Monoblock Valve |
| Valve Surface | Phosphating treating |
| Valve Sections | 1-7 sections |

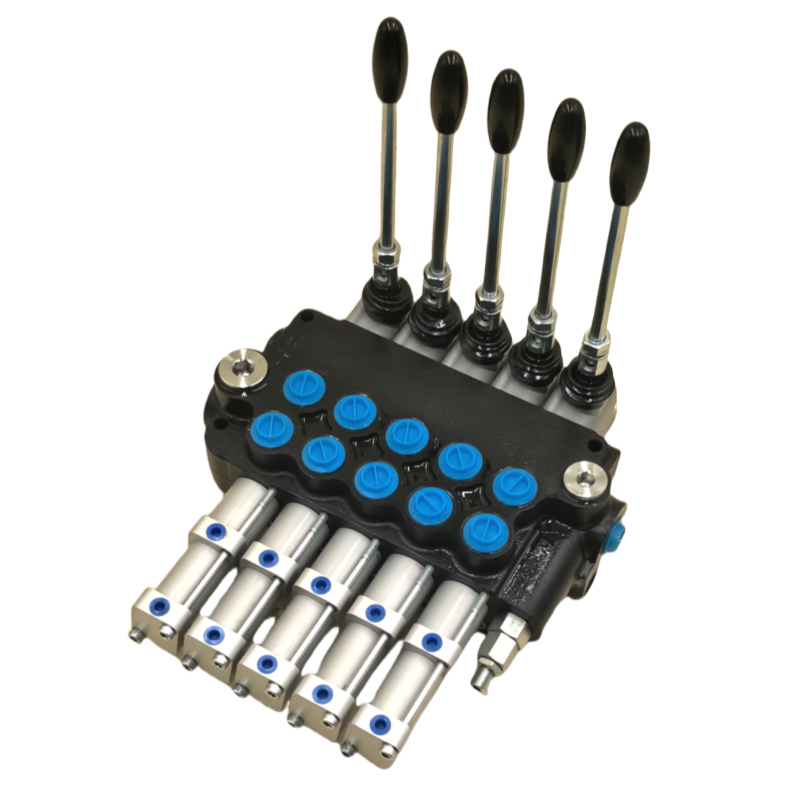

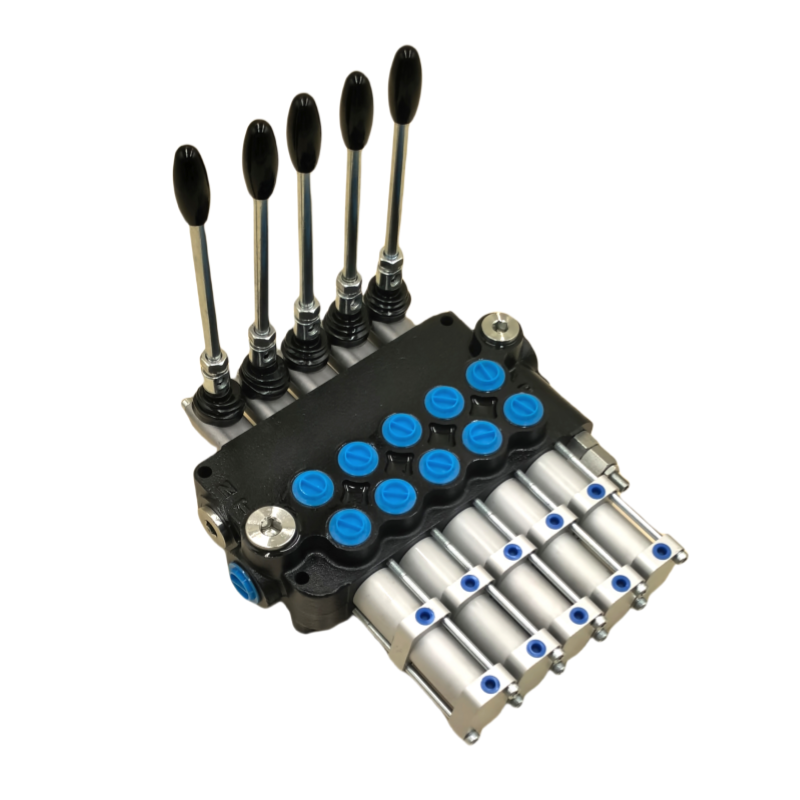

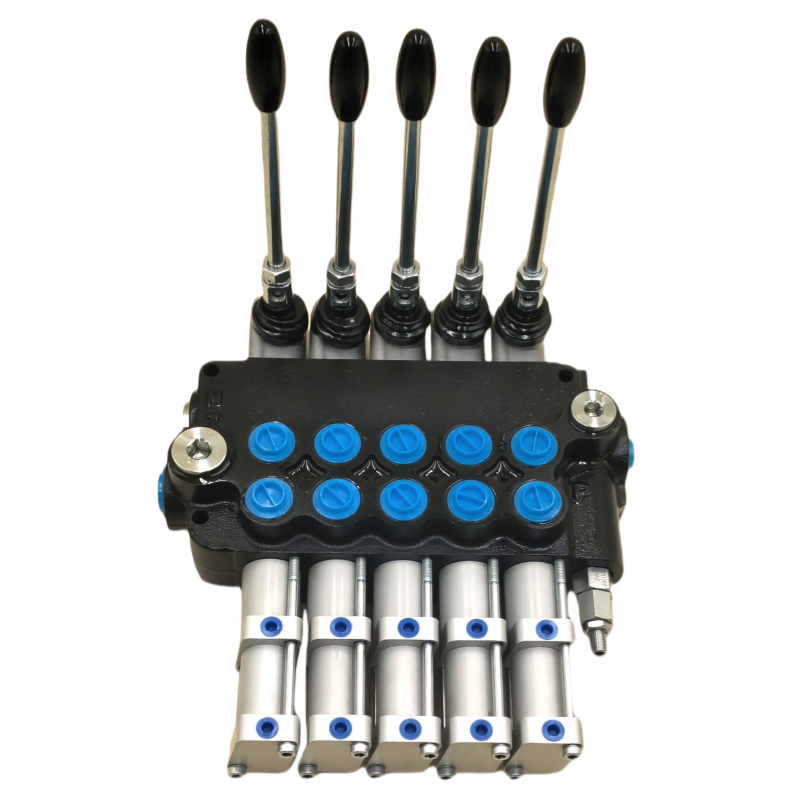

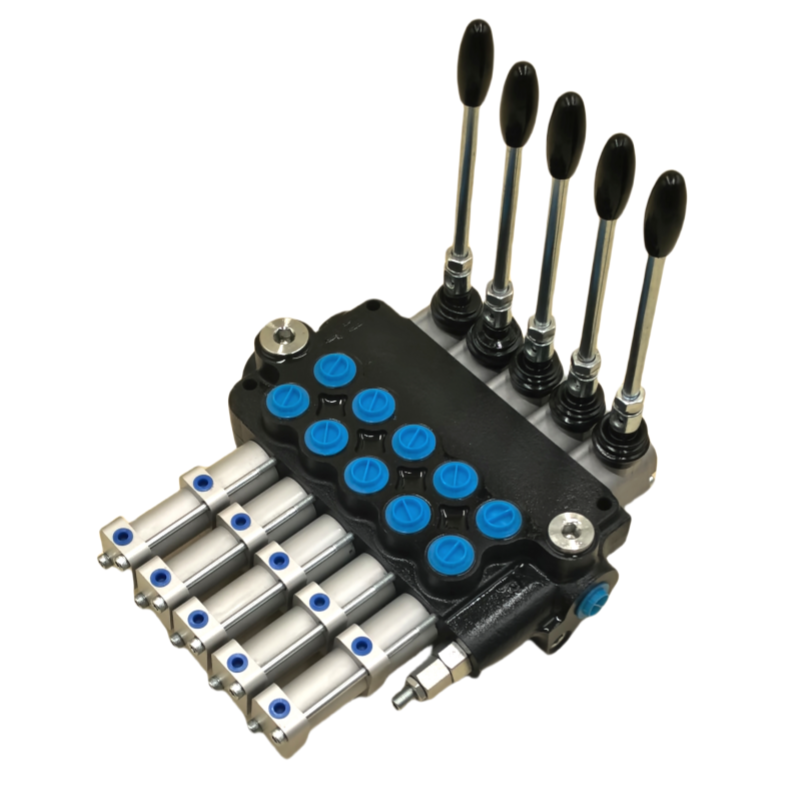

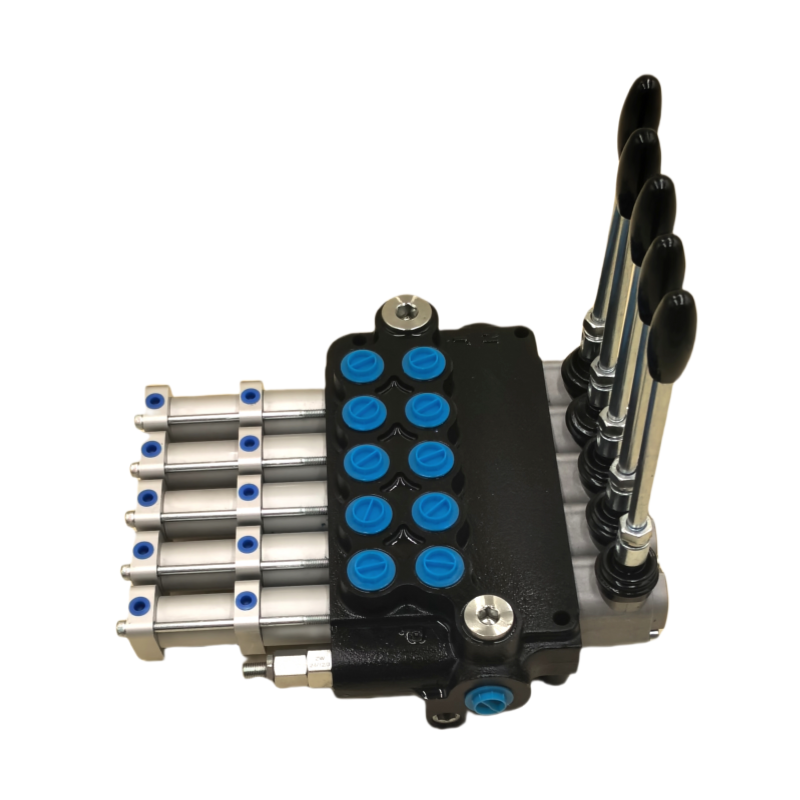

Introducing the P80 Pneumatic Directional Control Valve – an affordable and versatile solution for precise control in pneumatic systems. The P80 series comprises economical monoblock valves known for their compact structure and stable performance, making them suitable for a wide range of applications.
With a parallel circuit type, the P80 valve seamlessly integrates into pneumatic systems, ensuring efficient control and optimal performance. Its monoblock structure allows for easy installation and maintenance, while the availability of 1-7 sections offers flexibility to meet specific system requirements.
The P80 valve offers exceptional value with its low price, without compromising on quality or versatility. Whether you’re a small business or a large-scale manufacturer, the P80 valve provides reliable support, helping you enhance productivity while keeping costs in check.
Experience the reliability and performance of the P80 Pneumatic Directional Control Valve. Its compact design and stable operation make it a standout choice in the industry. With its ability to withstand demanding conditions, the P80 valve ensures consistent performance and durability.
