Additional information

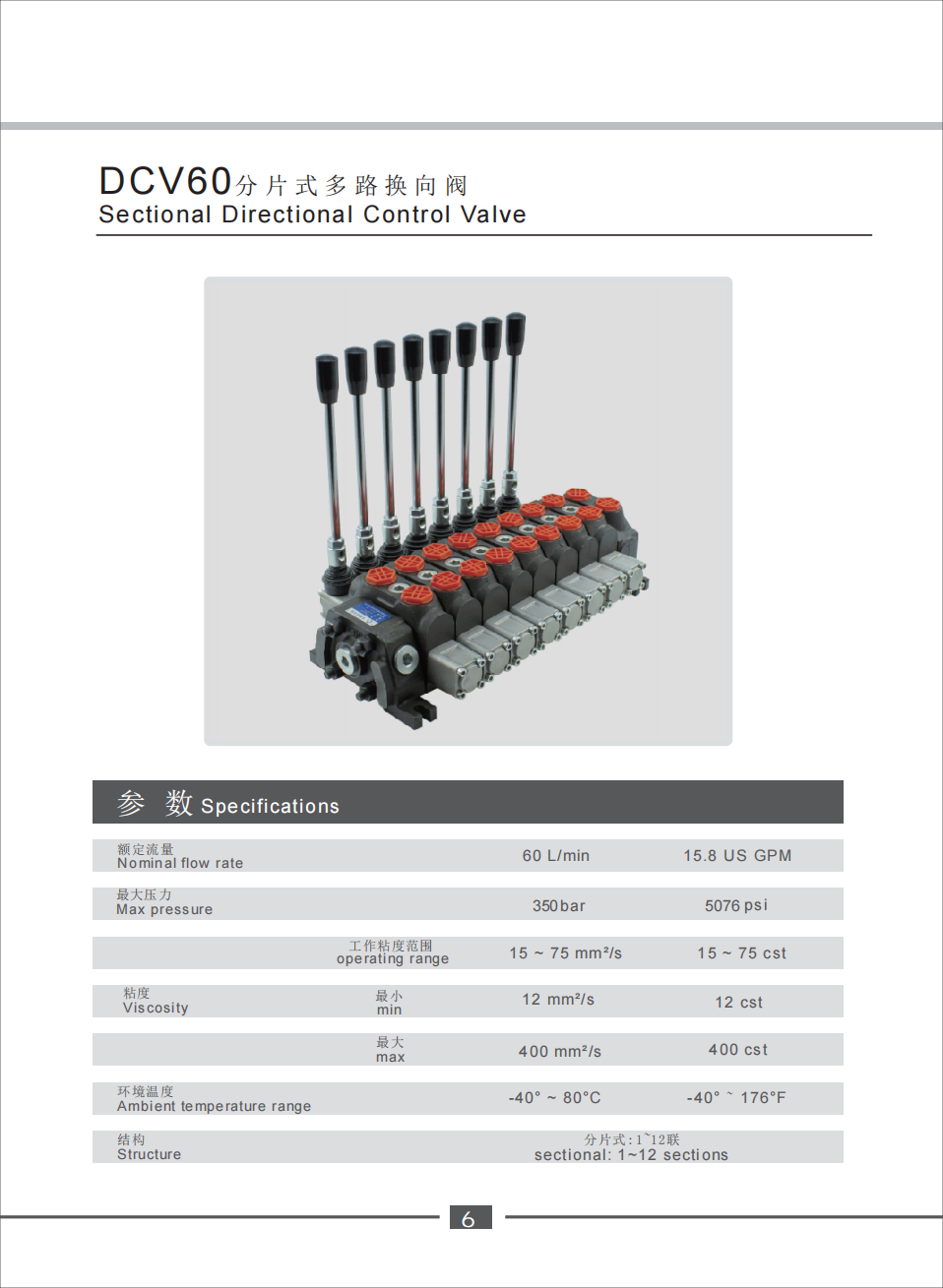

| Control Method | pneumatic |
|---|---|
| Presure Medium | Mineral oil based hydraulic oil |
| Nominal Flow | 60 L/min |
| Viscosity Range | 12 CST-400 CST |
| Operating Pressure | 350 bar (35 MPa) |
| Internal Leakage | 15 cc/min at 160 bar, 50℃ |
| Ambient Temp | -40°C to +80°C (-40°F to +176°F) |
| Valve Structure | Sectional Valve |
| Valve Surface | Phosphating treating |
| Valve Sections | 1-12 Sections |
| Rustproof Level | Neutral salt spray test, 48hours |
Description

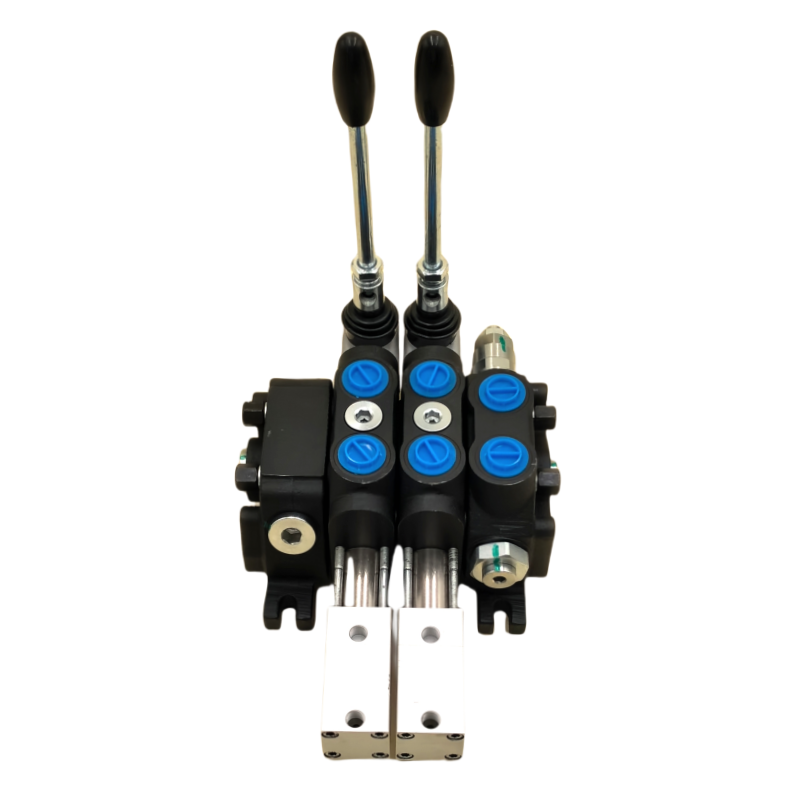

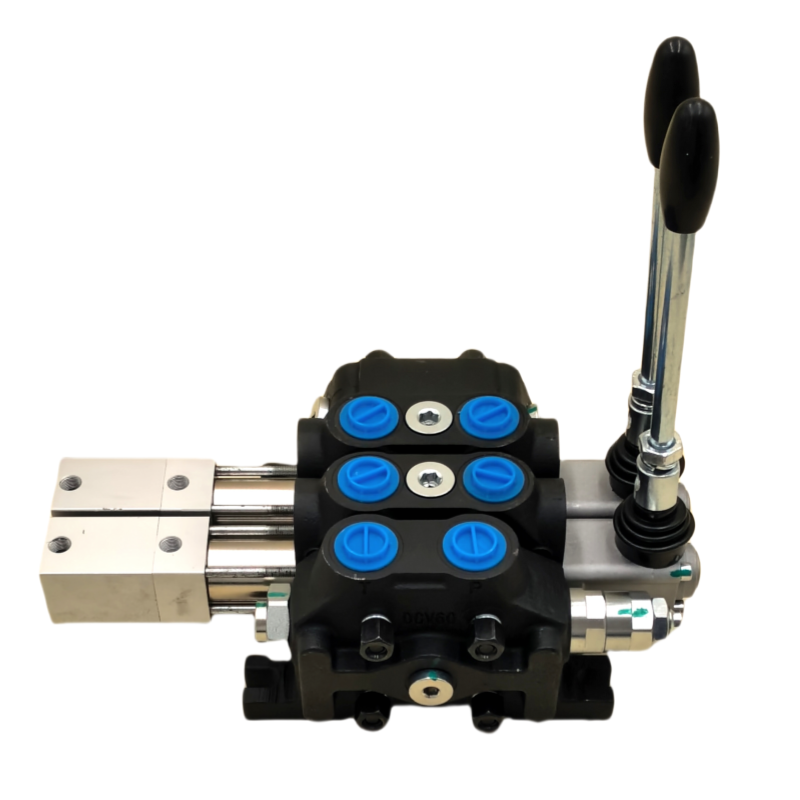

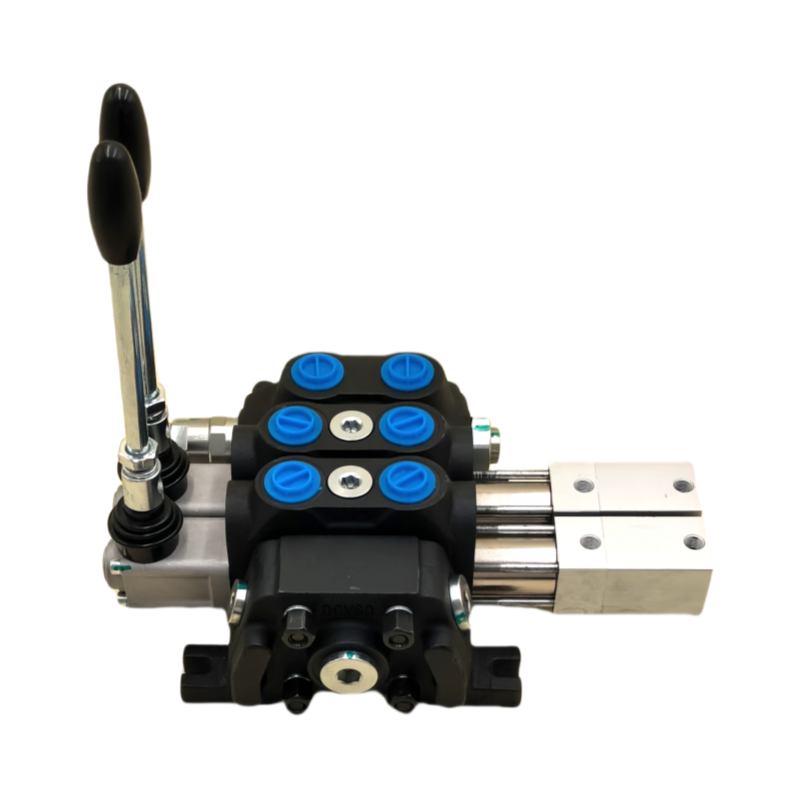

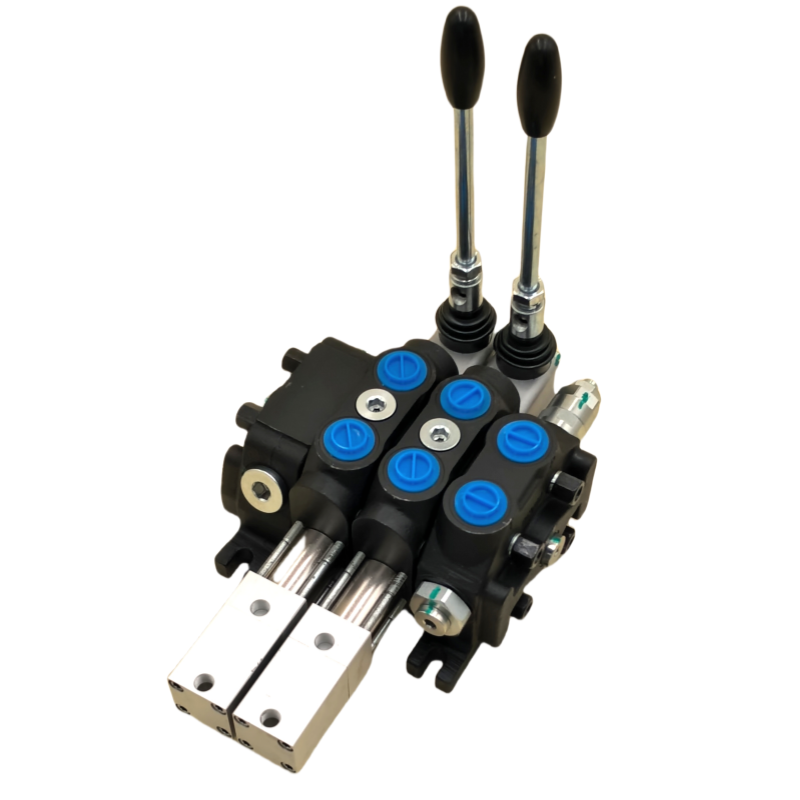

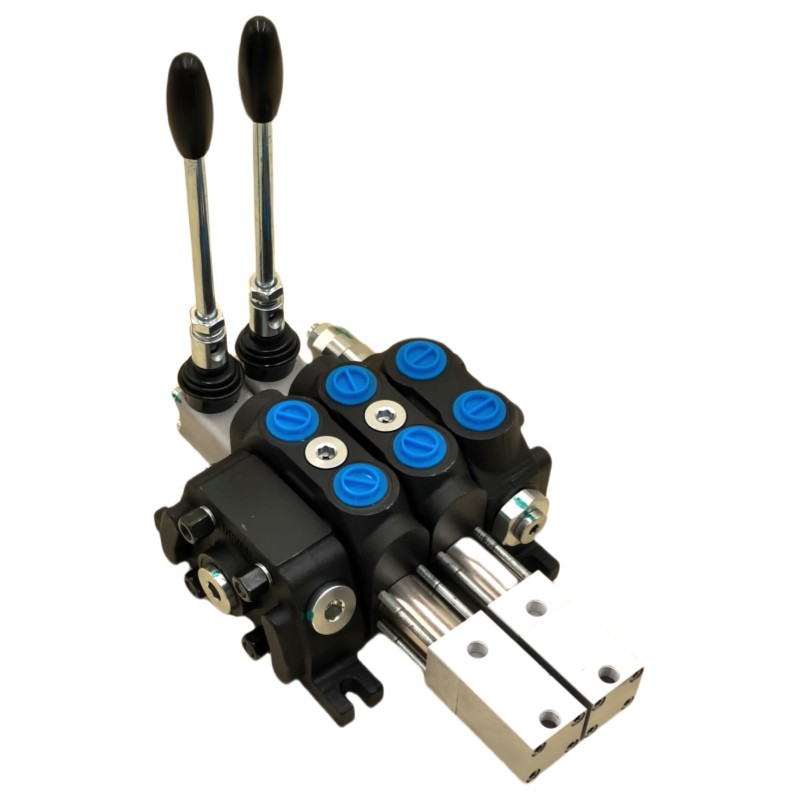

The DCV60 pneumatic Directional Control Valve is a reliable solution for high-pressure hydraulic systems used in drilling machines, sanitation equipment, and other applications. Its robust design ensures long-lasting performance even under the most demanding conditions.

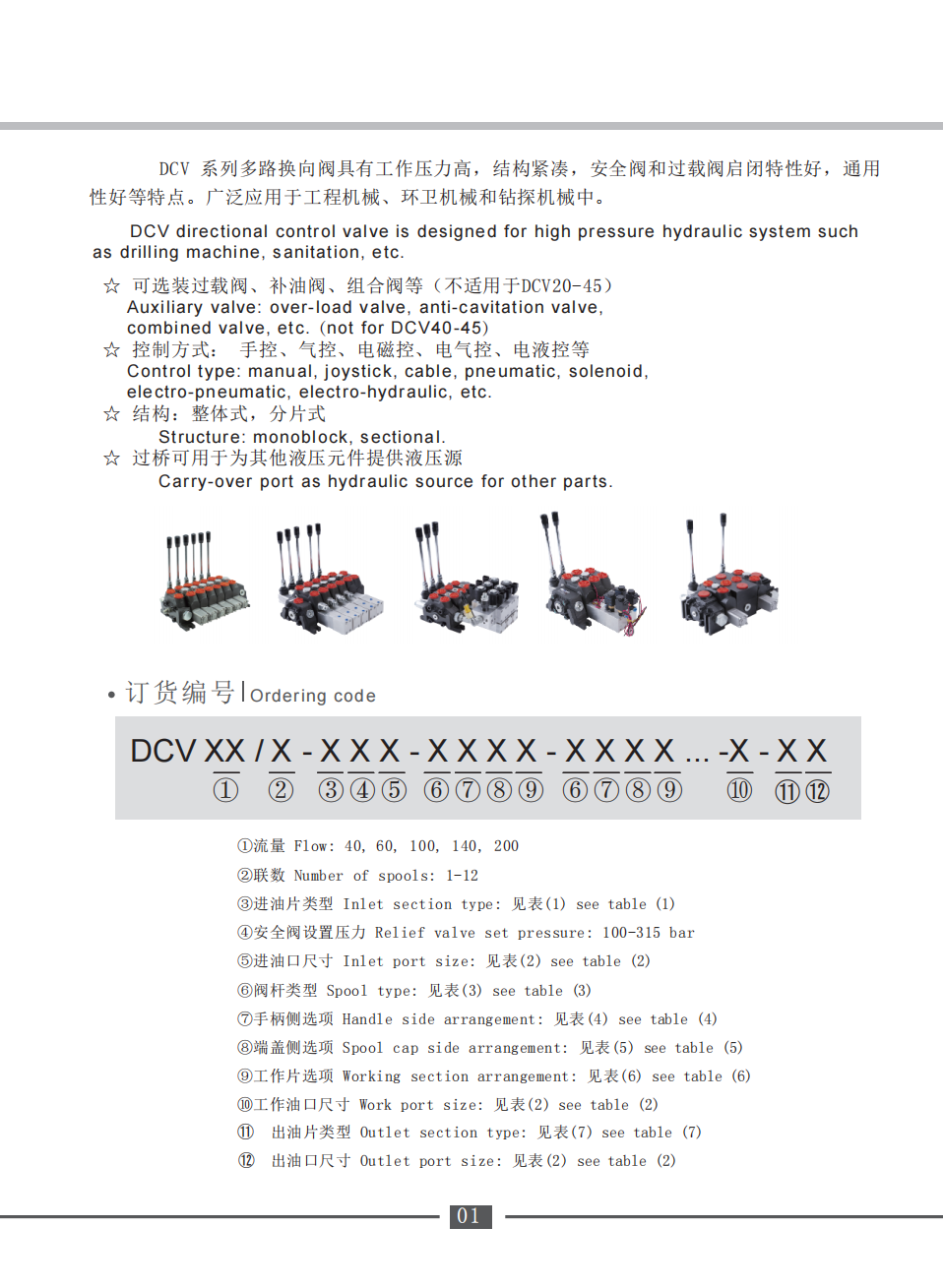

Auxiliary valves, such as over-load valves, anti-cavitation valves, and combined valves, are available to provide additional functionality to the system. These valves are designed to work in conjunction with the DCV60 to help regulate pressure and flow within the system.

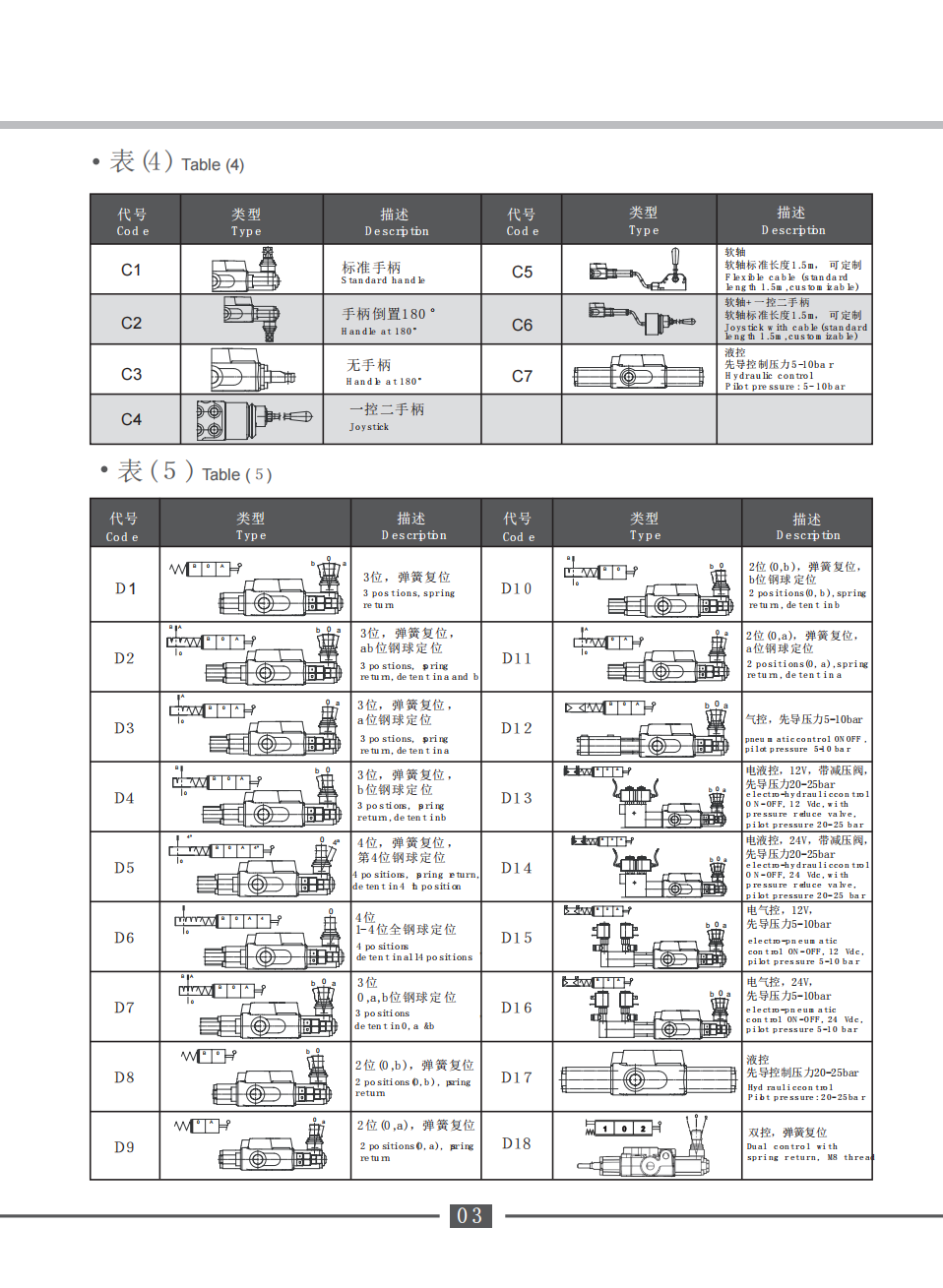

The DCV60 offers a range of control options, including manual, pneumatic, electro-pneumatic, and electro-hydraulic. This flexibility makes it easy to integrate into existing systems and ensures that it can be adapted to suit a variety of applications.

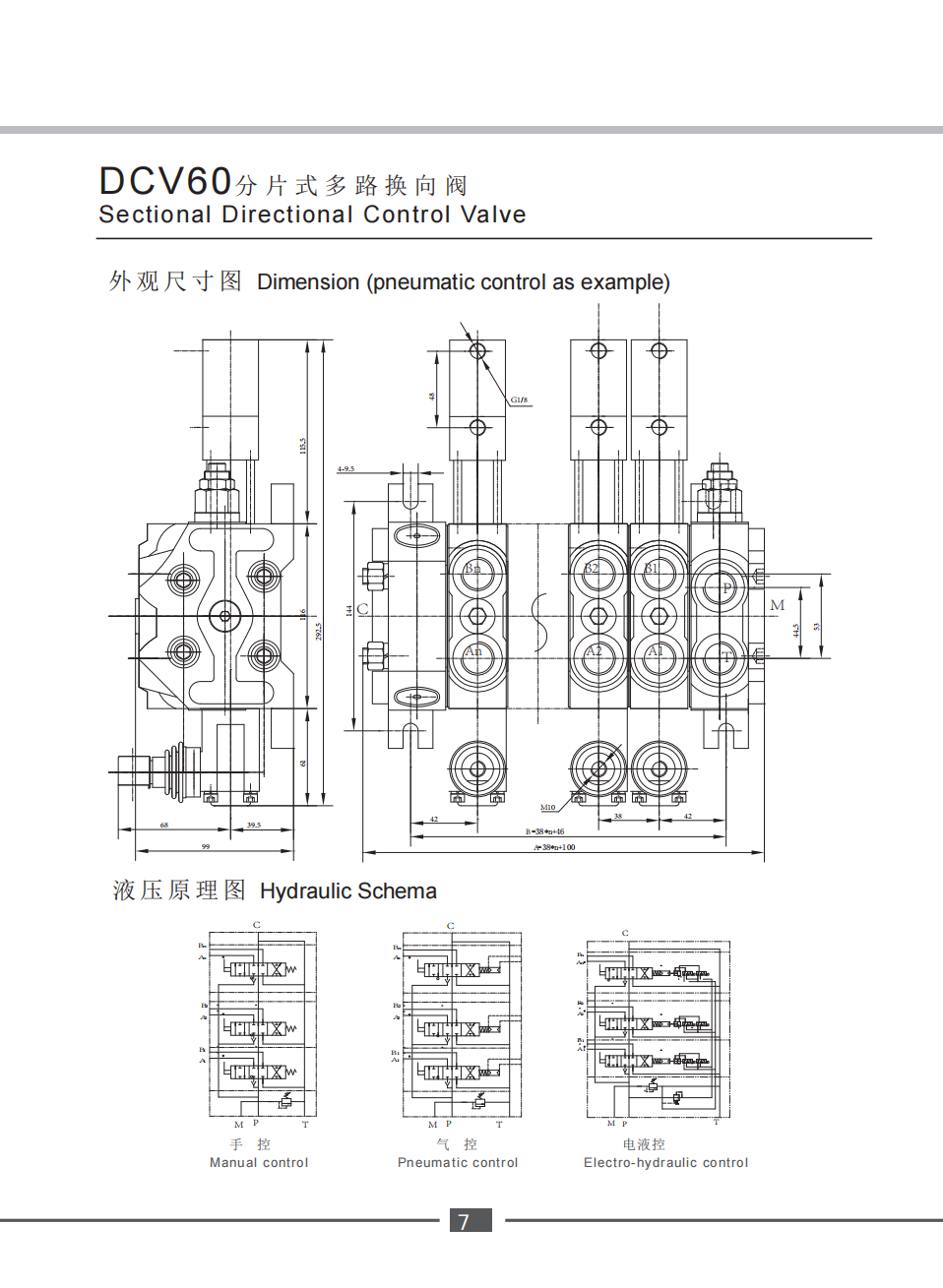

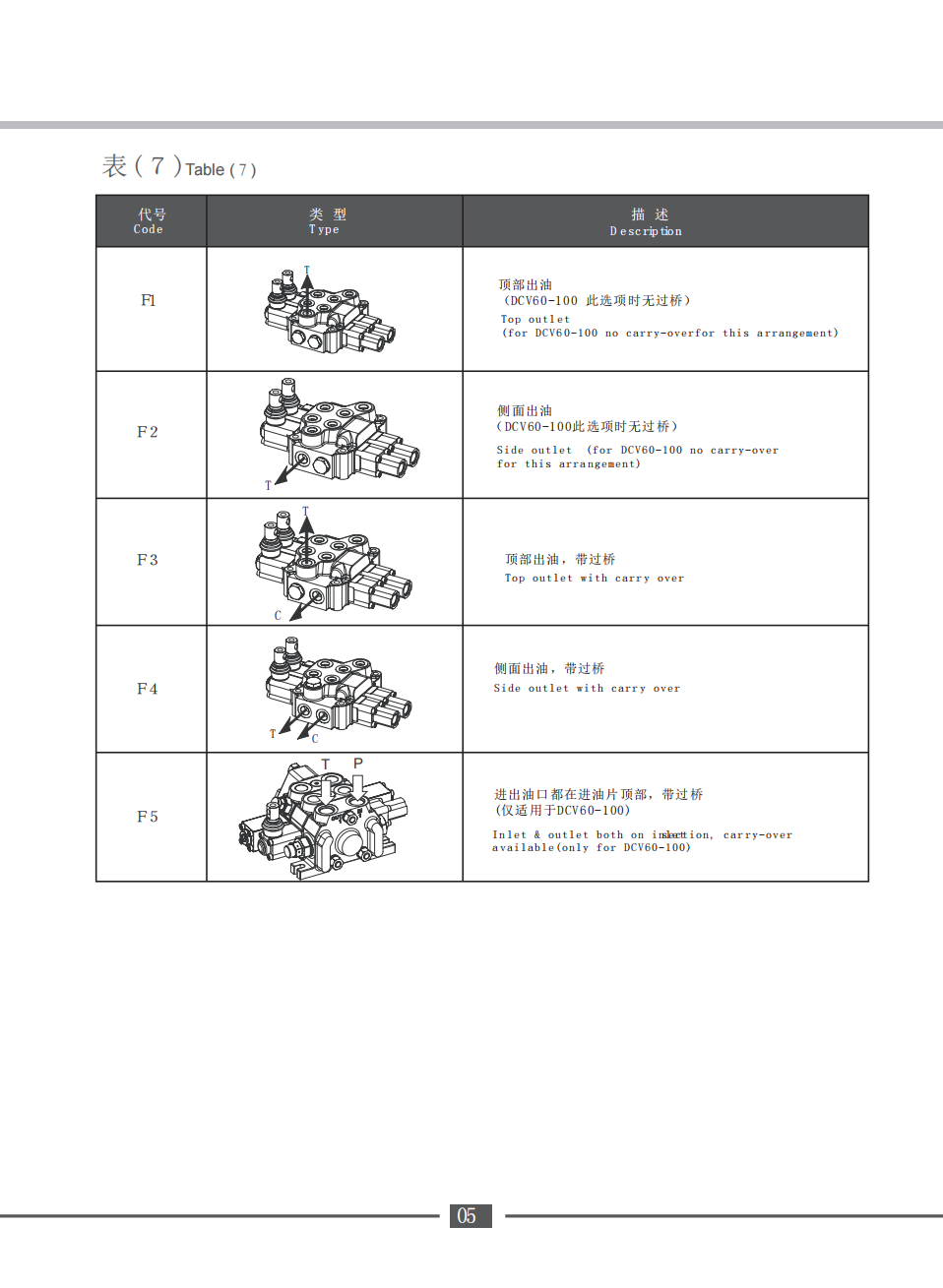

The sectional structure of the DCV60 ensures that it is easy to service and maintain, reducing downtime and associated costs. Additionally, the carry-over port can be used as a hydraulic source for other parts, making the DCV60 a versatile and valuable component of any hydraulic system.
Overall, the DCV60 pneumatic Directional Control Valve is an excellent choice for anyone looking for a reliable, high-performance control valve for their hydraulic system. With a range of auxiliary valves and control options, as well as a sectional structure for easy maintenance and a carry-over port for additional versatility, the DCV60 is an ideal solution for a variety of applications.
